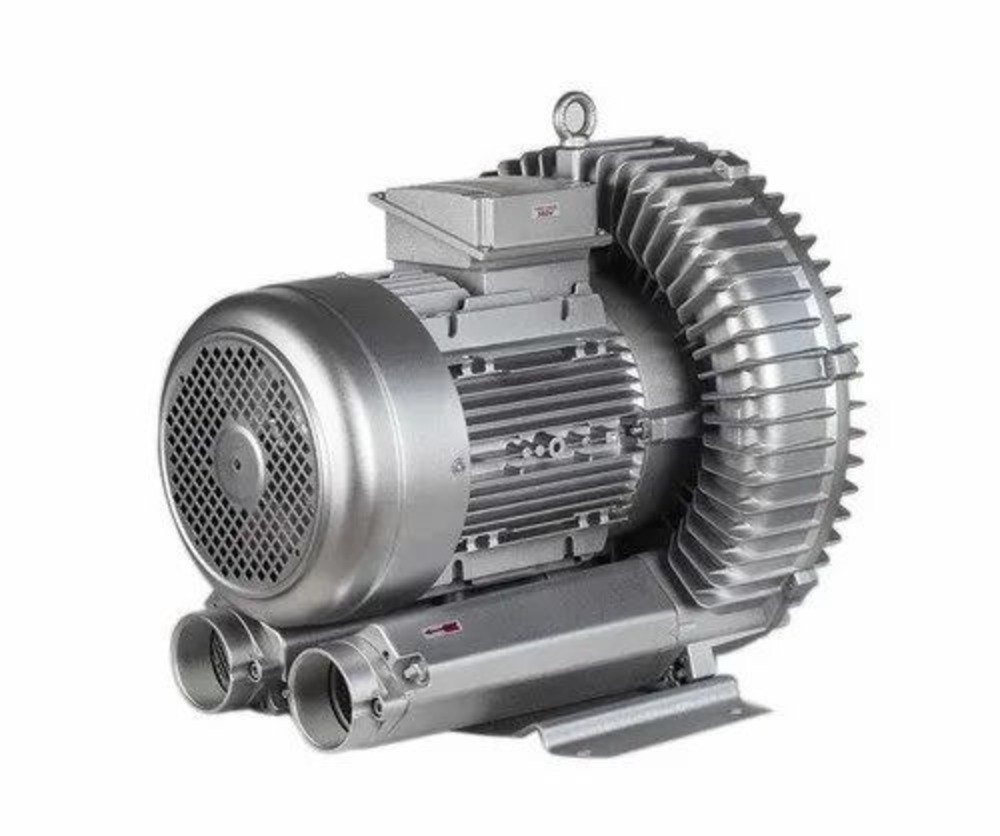

Transfluid Ring Blowers (Side Channel Blowers / Regenerative Blowers) are compact, high-performance units engineered to deliver high-velocity, low-pressure airflow or deep vacuum suction. Unlike heavy-duty roots blowers, ring blowers are preferred for medium-to-low capacity applications where low maintenance, small installation footprints, and whisper-quiet operations are critical.

By utilizing a non-contacting, multi-vane impeller that accelerates air through a side channel via centrifugal force, Transfluid Ring Blowers produce a continuous, pulsation-free air stream. They are the ideal, energy-efficient choice for commercial STPs, batch aeration tanks, industrial vacuum systems, and automated bottling lines.

Key Technical Features

• Virtually Maintenance-Free Operation: With only one moving part (the impeller) and no touching components inside the compression chamber, there are no internal seals, valves, or sliding vanes to wear out. No routine oiling or lubrication is required.

• 100% Oil-Free Design: The internal bearings are double-shielded and pre-greased outside the compression chamber. This guarantees completely clean, oil-free discharge air, protecting delicate biological cultures and fine-pore aeration diffusers.

• Whisper-Quiet Performance: Featuring integrated double-sided intake and discharge silencers, our ring blowers operate with significantly lower noise levels and minimal structural vibration compared to traditional positive displacement units.

• Dual-Function Capabilities (Pressure & Vacuum): Transfluid ring blowers can be configured seamlessly for either pressure applications (blowing air) or negative-pressure setups (vacuum suction) without modifying the core unit.

• Die-Cast Aluminum Build: Manufactured using premium-grade die-cast aluminum alloys, the casing and impeller are exceptionally lightweight, rust-proof, and offer superior heat dissipation properties for long continuous run-times.

Technical Specifications

• Brand: Transfluid

• Design Type: Regenerative / Side Channel Blower

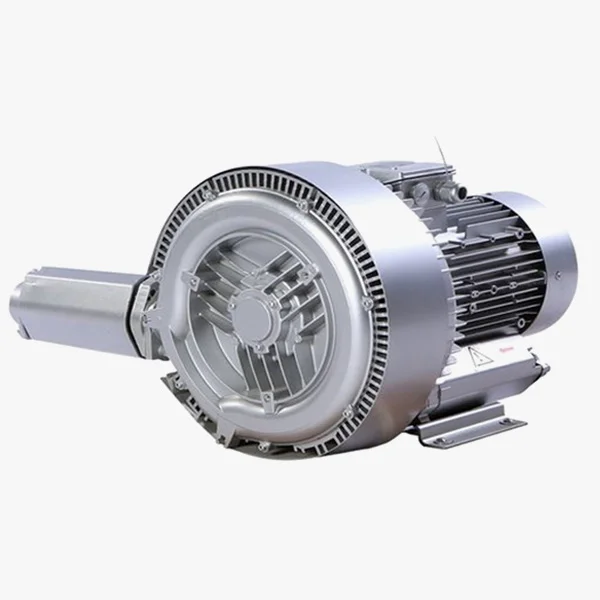

• Stage Configuration: Available in Single-Stage (for higher volume airflow) and Two-Stage (for higher pressure/vacuum demands)

• Flow Capacity Range: $40 \text{ m}^3/\text{hr}$ to $2,500 \text{ m}^3/\text{hr}$

• Operating Pressure Range: Up to $0.6 \text{ bar}$ ($6,000 \text{ mmWg}$)

• Vacuum Suction Range: Up to $-0.45 \text{ bar}$ ($-4,500 \text{ mmWg}$)

• Material of Construction (MoC): High-tensile Die-Cast Aluminum alloy casing and impeller

• Motor Specification: Directly coupled IE2/IE3 premium efficiency motors, IP55 protection, Class F insulation (compatible with VFD controls)

Core Applications

• Commercial & Compact Aeration: Ideal for supplying oxygen to decentralized or packaged Sewage Treatment Plants (STPs) in hotels, residential townships, and commercial malls.

• Aquaculture & Fish Farming: Provides continuous, low-noise diffused aeration for commercial aquaculture tanks and biofloc ponds to sustain dissolved oxygen (DO) levels.

• Industrial Vacuum Gripping & Lifting: Powers automated pick-and-place CNC machinery, vacuum hold-down tables, and packaging lines.

• Plating Tank Agitation: Blasts air into electroplating and chemical chemical-process tanks to keep liquids moving uniformly, preventing sediment buildup.

• De-humidification & Air Knives: Feeds high-velocity air streams to air knives for rapid surface drying in bottling, canning, and sheet-metal manufacturing lines.

Standard Scope of Supply

Every Transfluid Ring Blower is delivered as a compact, standalone, ready-to-run package:

1. Direct-Driven Mono-block Blower Unit with dynamically balanced aluminum impeller.

2. Built-in Suction & Discharge Silencers to ensure quiet plant operations.

3. Internal Inlet Mesh Screen to prevent large external particles from entering the rotor chamber.

4. Heavy-Duty Mounting Footprint allowing for easy horizontal or vertical installation.

Why Choose Transfluid Ring Blowers?

When your plant needs a fit-and-forget airflow solution that takes up minimal space and runs silently, Transfluid Ring Blowers deliver the perfect balance. By removing the need for frequent belt adjustments, oil top-ups, and heavy foundational structures, our side-channel designs drastically lower your facility's long-term operational costs.

Looking for a Compact Aeration Blower?

Submit your required tank depth and required air volume ($\text{m}^3/\text{hr}$ or $\text{CFM}$) to our engineering application desk for an immediate model recommendation.
